Basic parameters:
Channel size: 505(width) x 305(height)mm
Conveyor speed: 0.16m/s
Conveyor max load: 100kg
Single inspection dosage:<0.1mR
Wire resolution: diameter 0.1mm（metal line）
Steel penetration: 5mm steel board.
Film safety: for ISO1600

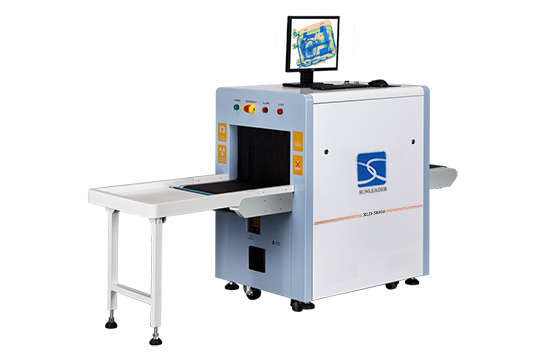

Features of 5030A channel mode X-ray machine
Item
Popular edition: 5030A
Basic parameter
Conveyor load
100KG
Conveyor speed
0.16m/s
Penetration
5mm steel board
X-ray source
Tube voltage
70KV
Beam direction
Bottom-up
Image system
X-ray sensor
single energy
Display
LCD
Real-time image storage
＞10000 PCS
rated power
0.5KVA
Product structure
integrated
Other configuration
Black box
without
Non-power baggage rack
YES
After service / free quality security
12 months
